FIXINGS & FASTENERS
We offer a range of high quality Spring steel fasteners and fixings used throughout the manufacturing industries.
TOOL CLIPS 100 SERIES
General tool & fluorescent lighting fitting clips

DESCRIPTION: n/a
THICKNESS: (mm): A range of sizes to grip diameters 1/4" - 2.1/2" (6.25 - 63.5mm)
MATERIAL: Spring Steel
STANDARD FINISH: K & S
PACKED PER BOX: Packaging to suit customers request, all items available from stock

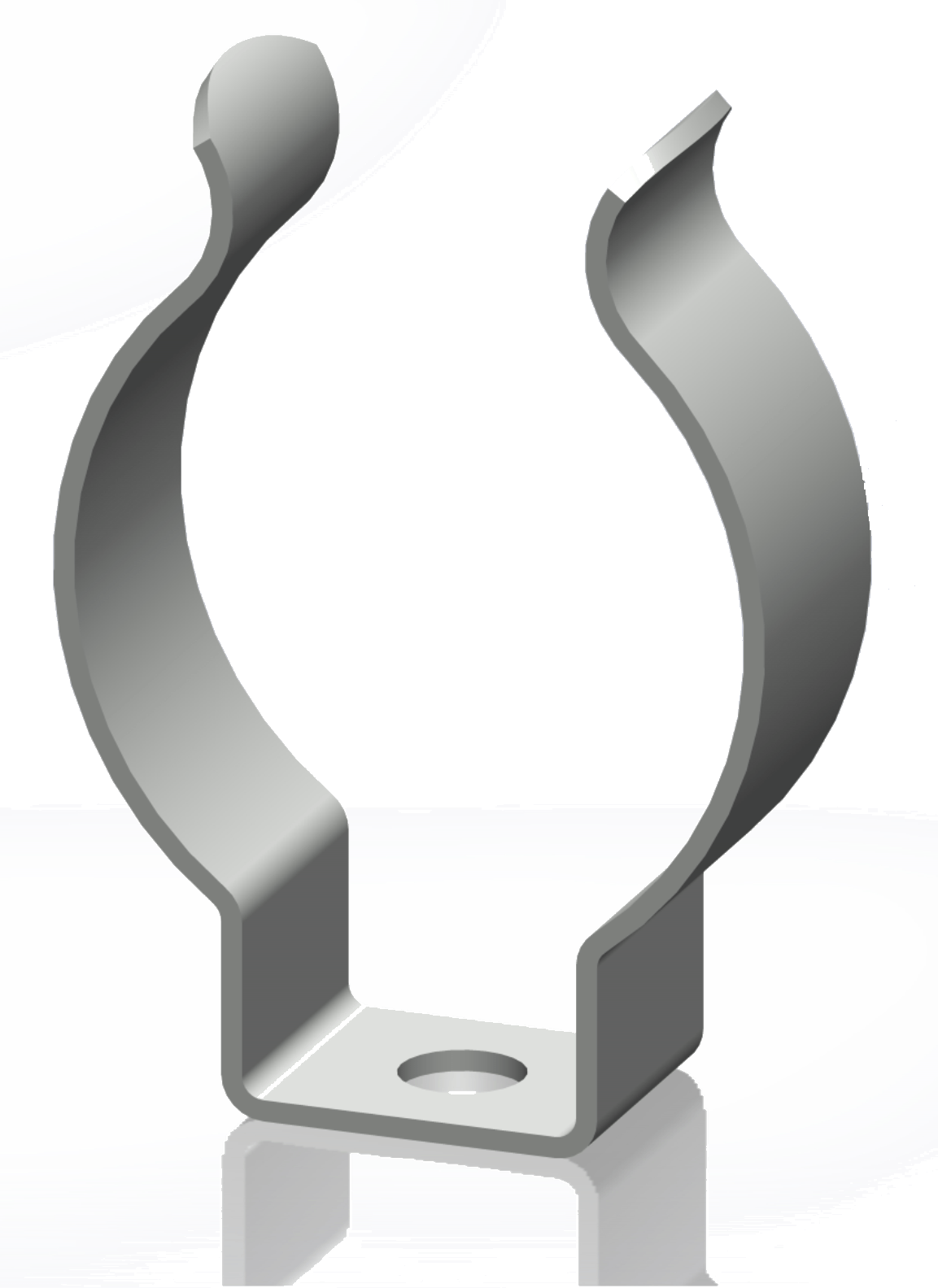

Metal spring clip with a base and curved arms.
Table of size ranges with corresponding part numbers for various coatings: Zinc, Rilsan Nylon, and Polythene.
TOOL CLIPS 101 SERIES
General tool & fluorescent lighting fitting clips

DESCRIPTION: n/a
THICKNESS: (mm): A range of sizes to grip diameters 1/4" - 2.1/2" (6.25 - 63.5mm)
MATERIAL: Spring Steel
STANDARD FINISH: K & S
PACKED PER BOX: Packaging to suit customers request, all items available from stock

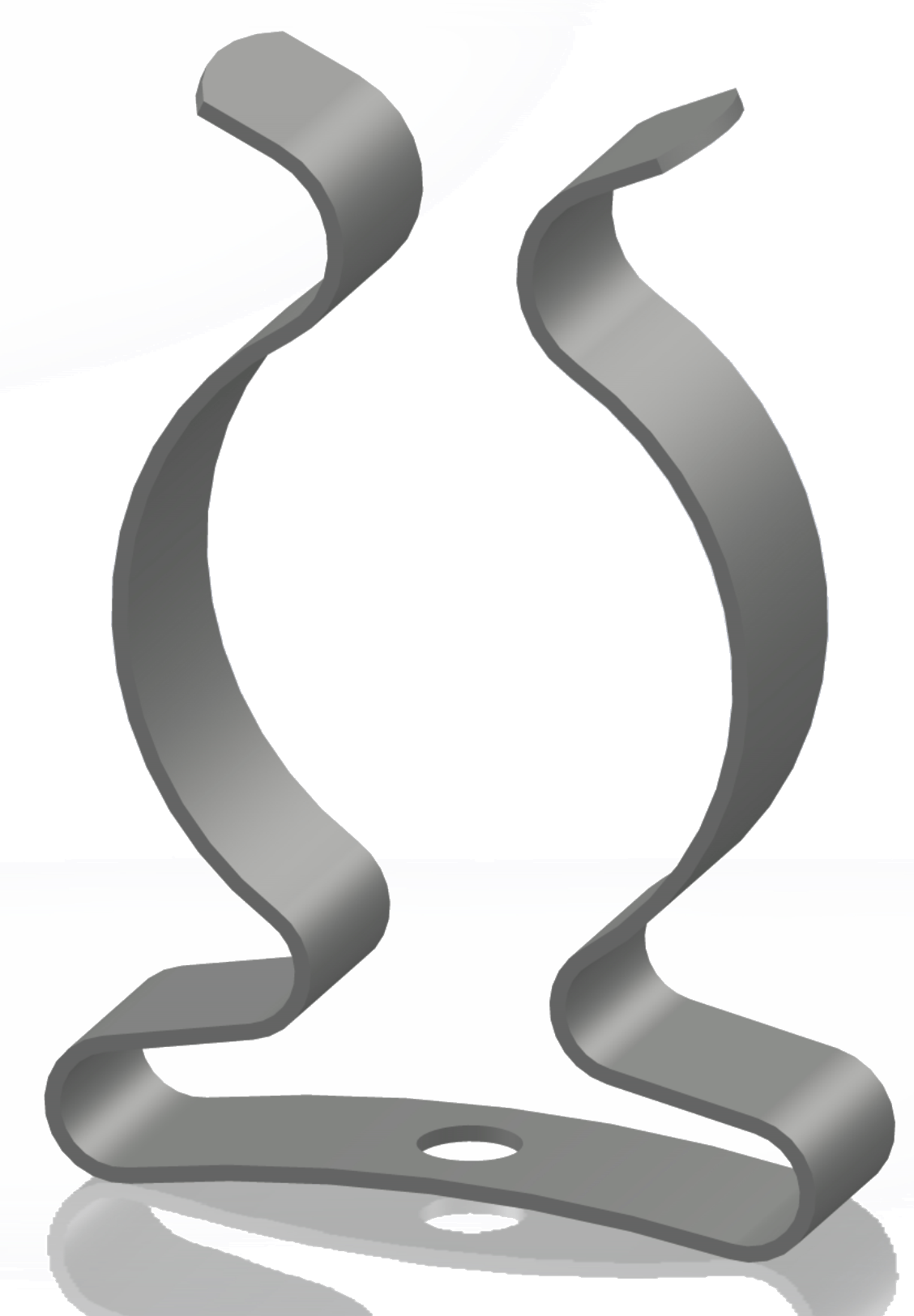

Silver metal spring clip with wavy sides and a flat base with a hole.
Table showing size ranges and corresponding product codes for different coatings.
PUSH ON FIXING
Metric round shafts | Spring steel, self colour

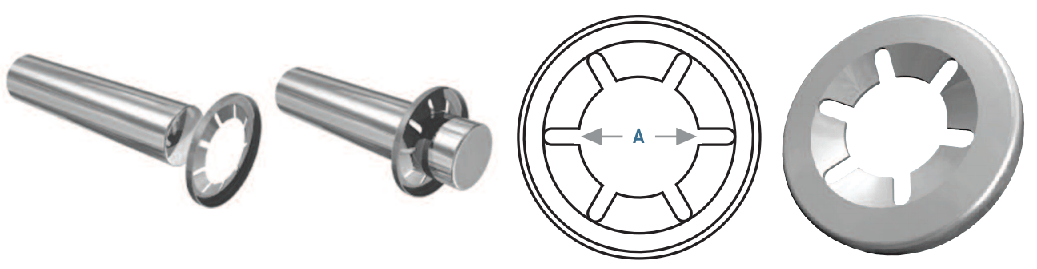

Hardware fasteners: a pin and a toothed retaining ring.

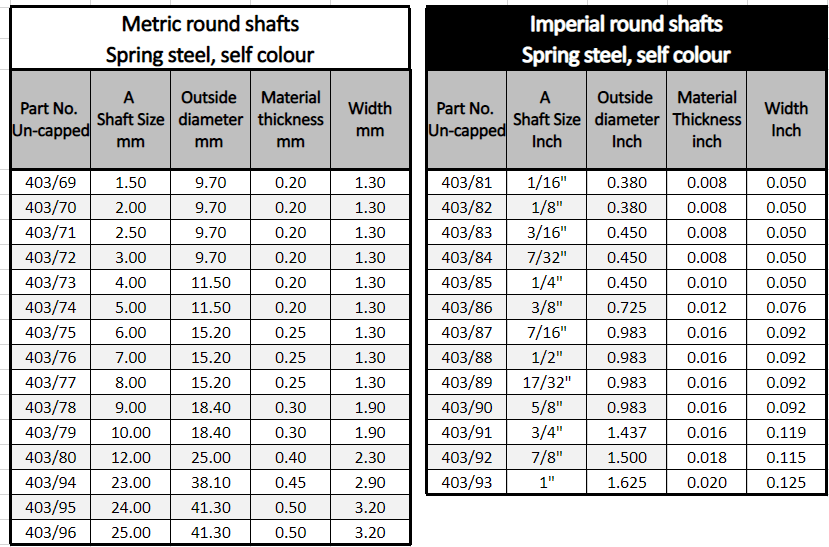

Tables of metric and imperial round shafts with dimensions in millimeters and inches, respectively.
PUSH ON FIXING CAPPED
Metric round shafts | Spring steel, self colour

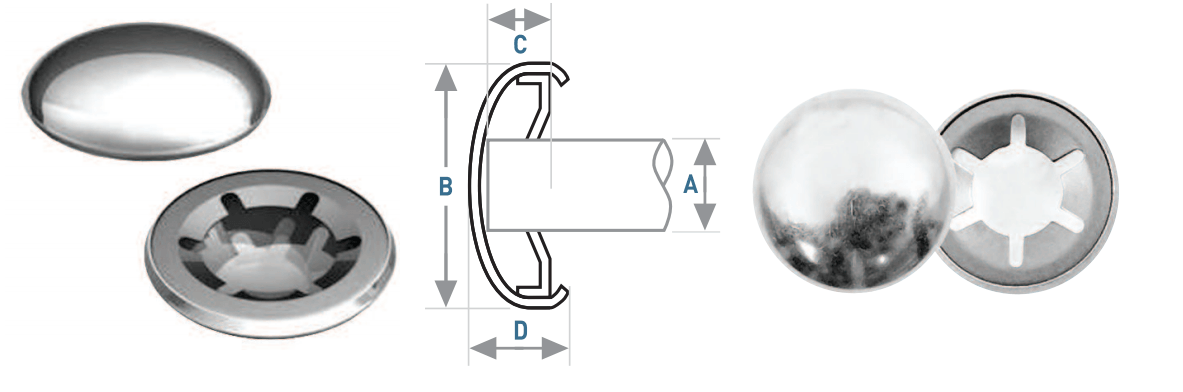

Various views of a chrome-plated push-on nut and its components, used for securing panels or objects.

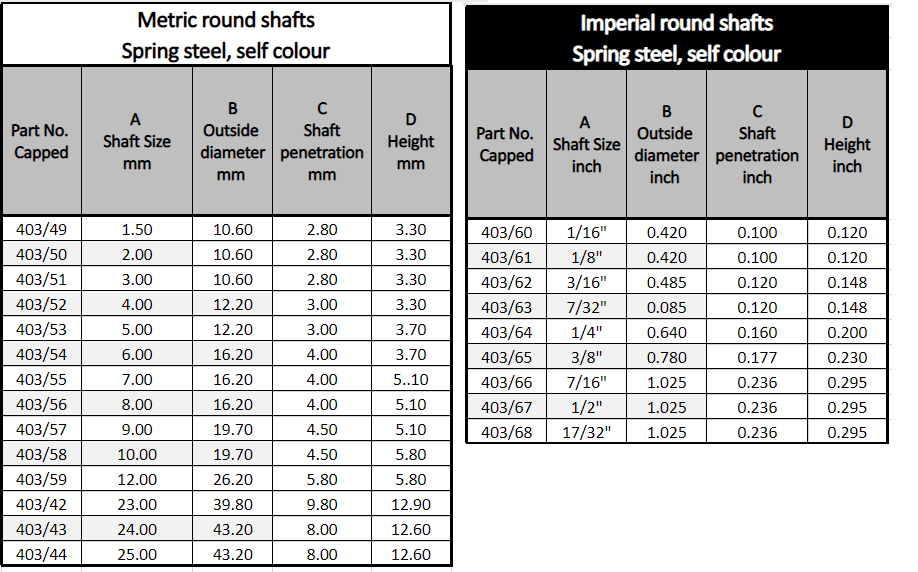

Tables comparing metric and imperial round shafts made of spring steel.
All dimensions shown are subject to engineering tolerances.
Non-standard parts may be subject to a minimum order quantity.
The standard Dome Axle Cap style is manufactured  from Stainless Steel.
The decorative Dome Axle Cap hides the end of the axle and the push-on fasten er - providing a more cosmetic appearance.
The height of the Dome Axle Cap has been developed to allow the axle to penetrate the push-on fastener sufficiently to provide maximum grip.

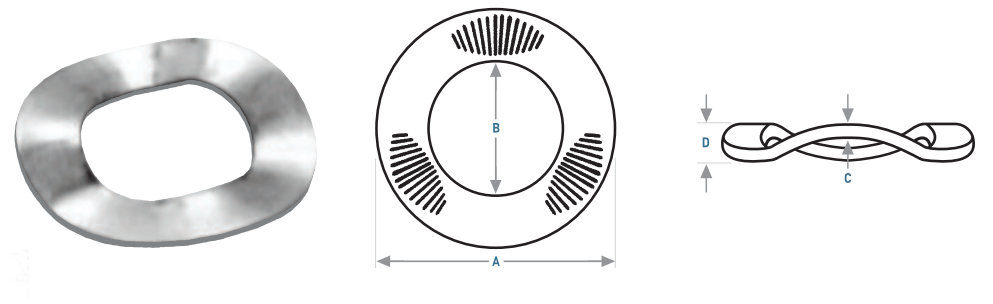

501 IMPERIAL SERIES WAVEY WASHERS

BERYLLIUM COPPER - Fabricated from Beryllium Copper and heat-treated for optimum spring properties.  These washers have good corrosion resistance, are non-magnetic and a high resistance to permanent set under compression.  Standard finish: F

STAINLESS STEEL -An ideal lock washer having a wide range of applications in many industries. Three equi-saced corrugations, radii of upper and lower corrugations are equal. Fabricated from Austenitic Stainless Steel with excellent anti-corrosion properties and a high resistance to permanent set under compression.  Standard finish: A
A Belleville spring washer, shown in 3D and diagram views, features a curved, disc-like shape.

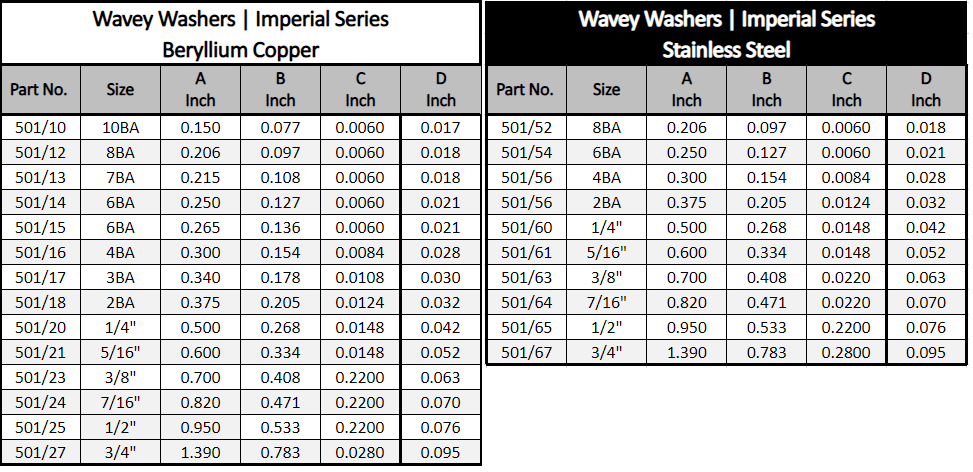

Two tables showing the dimensions of

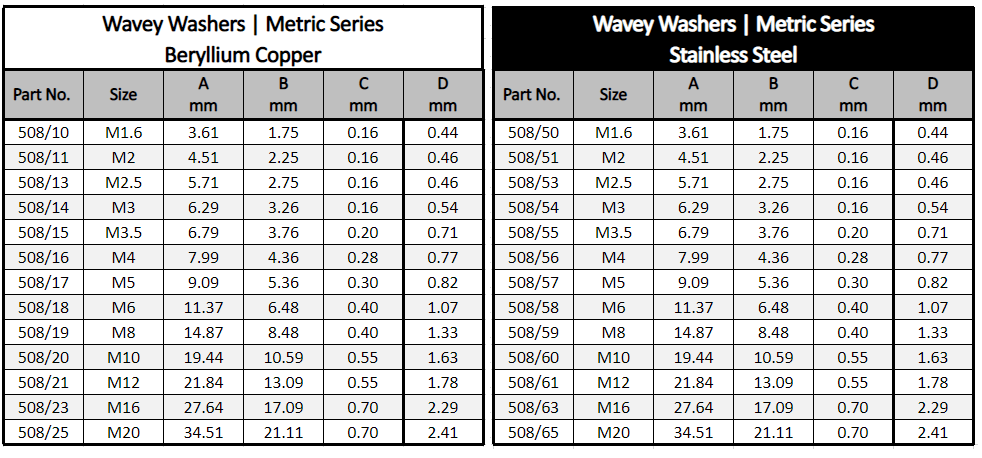

508 METRIC SERIES WAVEY (CRINKLE) WASHERS

BERYLLIUM COPPER - Fabricated from Beryllium Copper and heat-treated for optimum spring properties.  These washers have good corrosion resistance, are non-magnetic  and a high resistance to permanent set under compression.  Standard finish: F

STAINLESS STEEL - An ideal lock washer having a wide range of applications in many industries.  Three equi-saced corrugations, radii of upper and lower corrugations are equal.  Fabricated from Austenitic Stainless Steel with excellent anti-corrosion properties and a high resistance to permanent set under compression.  Standard finish: A
A Belleville spring washer, shown in 3D and diagram views, features a curved, disc-like shape.
Two tables comparing wavy washers' dimensions made of Beryllium Copper and Stainless Steel.
STANDARD FINISHES

(F) Natural finish on non-ferrous materials
(A) Clean natural finish or for heat treated materials:- Normal Blue/Brown heat-treatment discolouration

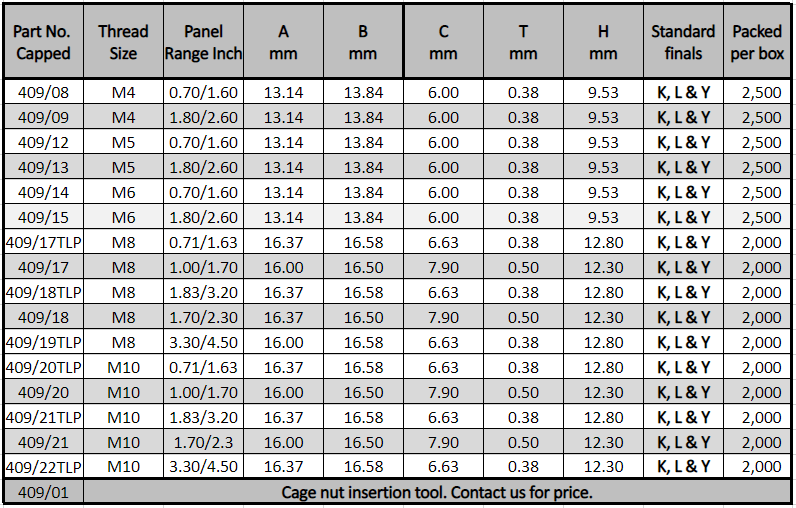

CAGE NUTS 409 SERIES
Suitable for blind locations. Eliminates welding, clinching and staking.

CAGE: High Carbon Steel
NUT: Low Carbon Steel
STANDARD FINISH: K,L & Y
Standard tolerances apply to all dimensions

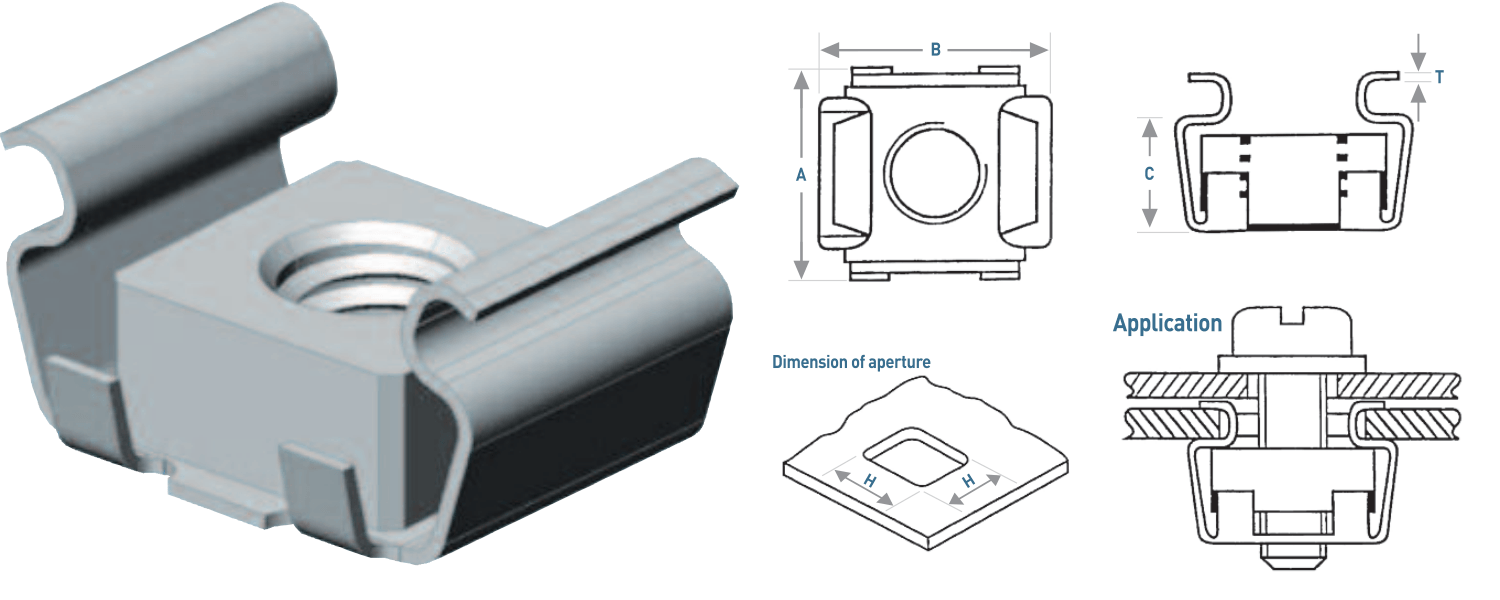

Metal cage nut with threaded insert, drawings showing dimensions and application.
Table of various capped nut specifications including thread size, dimensions, and quantity packed per box.

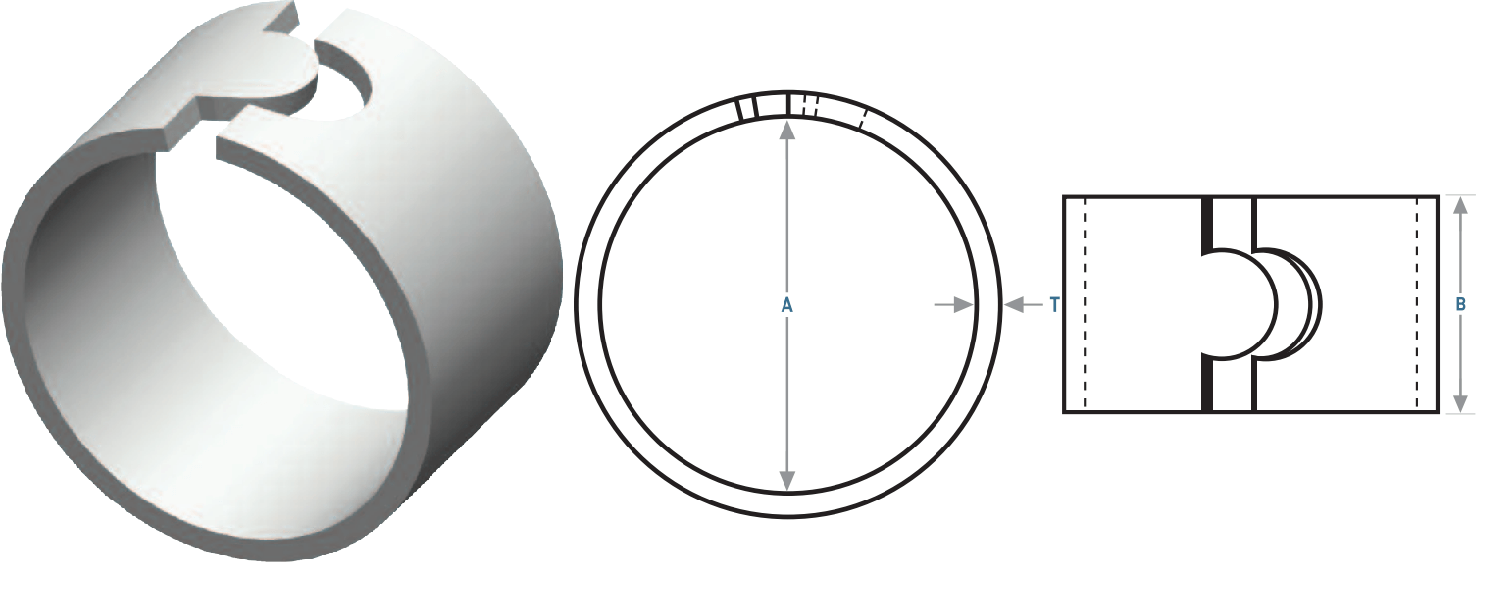

COMPRESSION RINGS
Securing hub to shaft under firm spring tension

MATERIAL: Spring steel, self colour
STANDARD FINISH: B & L


White ring with cut-out shapes, next to two diagrams showing a cross-section and side view of the ring.

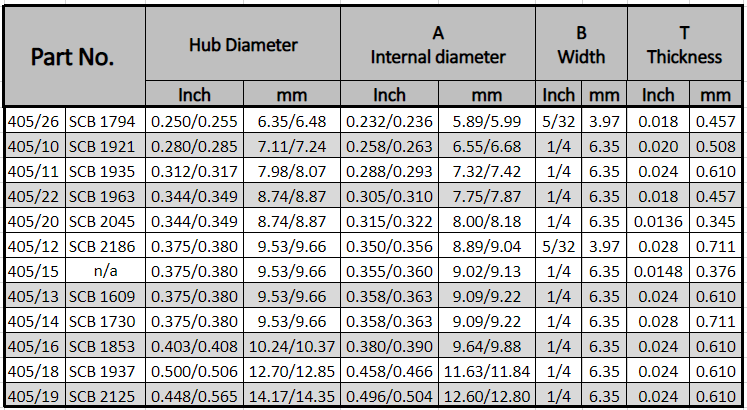

Table showing specifications (part number, hub diameter, internal diameter, width, thickness) in inches and millimeters.
STANDARD FINISHES

*Available in zinc & clear and zinc & yellow
(K) Electro-plated zinc. Colourless/clear, chromatic passivation
(L)  Electro-plated zinc. Colour Chromatic passivation.
(B) Polished bright, clean natural or blue/brown oxidised finish.  Dipped in rust preventing oil.

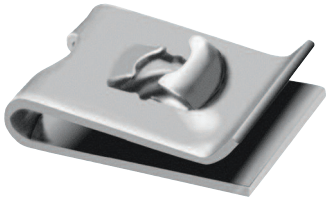

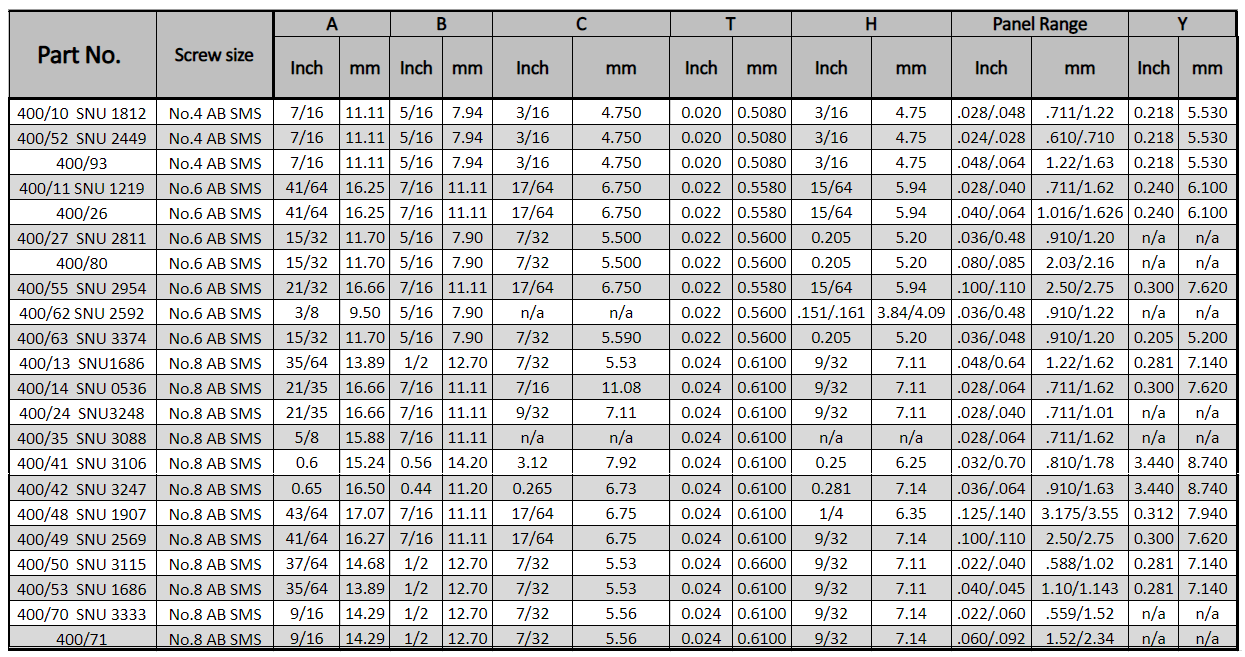

CAPTIVE NUTS U TYPE
Metric round shafts | Spring steel, self colour
Metal clip nut, silver, holding two surfaces together.
Table of measurement data, listing part numbers with measurements in millimeters and inches across various dimensions.

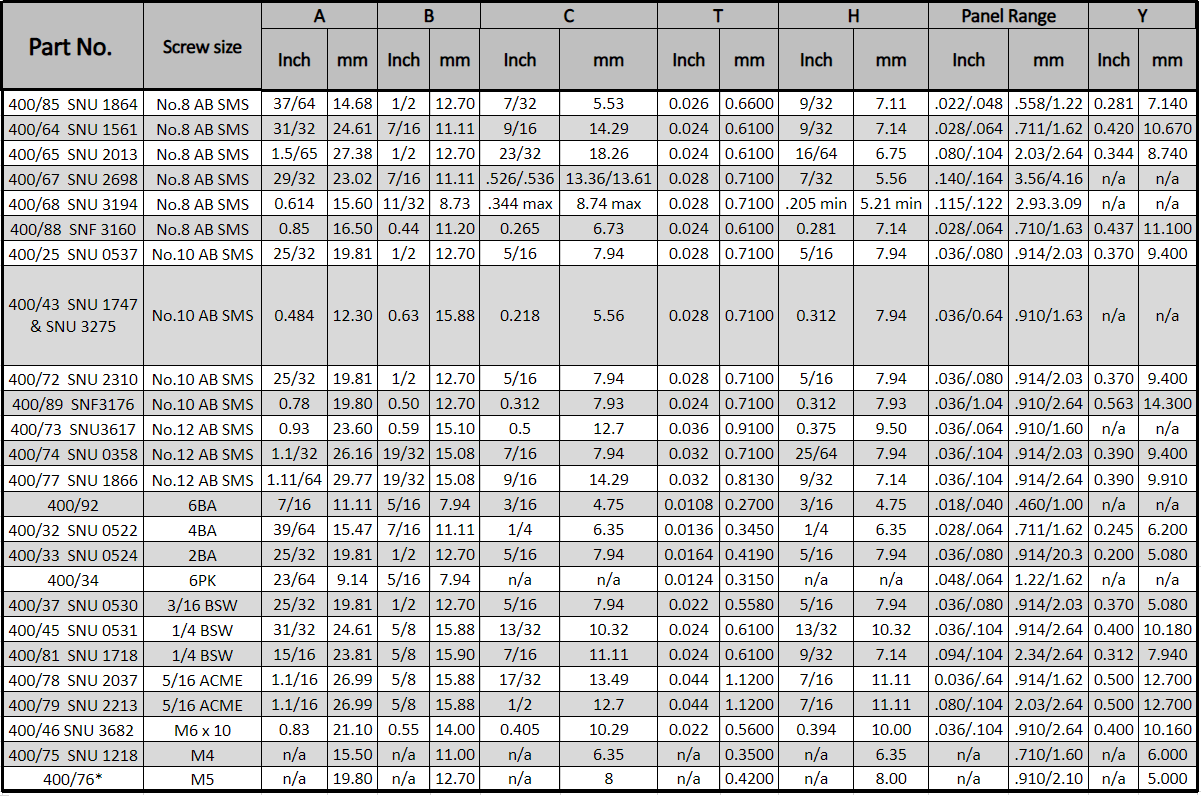

CAPTIVE NUTS U TYPE
(CONTINUED)

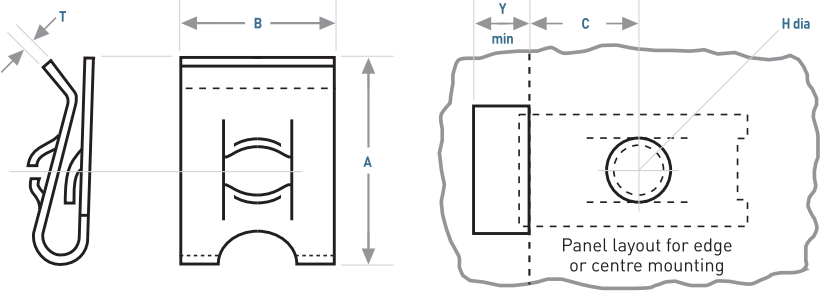

Diagram of a metal clip and panel layout, labeled with dimensions for edge or center mounting.
Table of dimensions for various part numbers, listing values for different letter-labeled parameters.
STANDARD FINISHES

(B)  Polished bright, clean natural or blue/brown oxidised finish. Dipped in rust preventing oil.
(L)   Electro-plated zinc. Colour chromatic passivation

CAPTIVE NUTS CHASSIS - OPEN & J TYPES are also available in this range
SUSPENDED CEILING & PARTITIONING ACCESSORIES
Pre-Met offers a comprehensive range of standard accessories for the suspended ceiling and partitioning market.
EXPOSED GRID SYSTEM
EXPOSED GRID SYSTEM
DIAGRAM

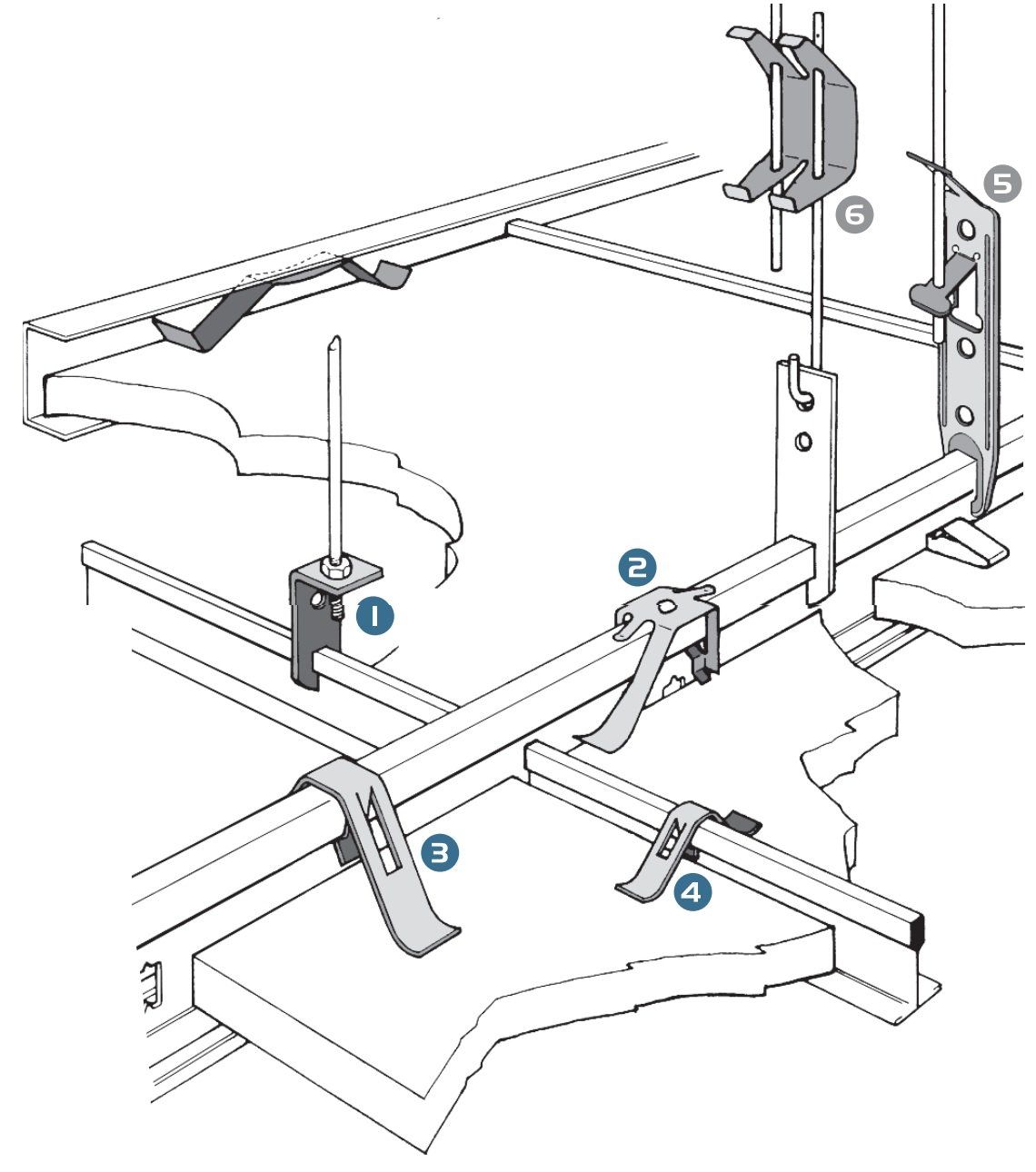

Overhead view of several metal brackets attached to suspended ceiling frame members for grid installation.

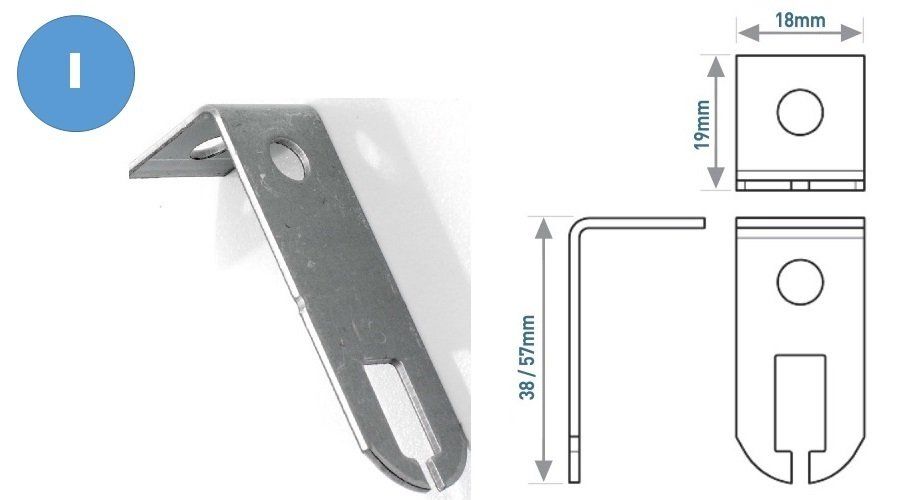

DIRECT SUSPENSION CLIP
L.S.202/14 - L.S.202/15*
Metal bracket with dimensions and technical drawing.

THICKNESS: (mm): 1.50
WEIGHT(KG) PER 100: 0.98 & 1.60*
SIZE (mm): 38.00 & 57.00*
MATERIAL: Galvanised mild steel
STANDARD FINISH: Self Colour
PACKED PER BOX: 100

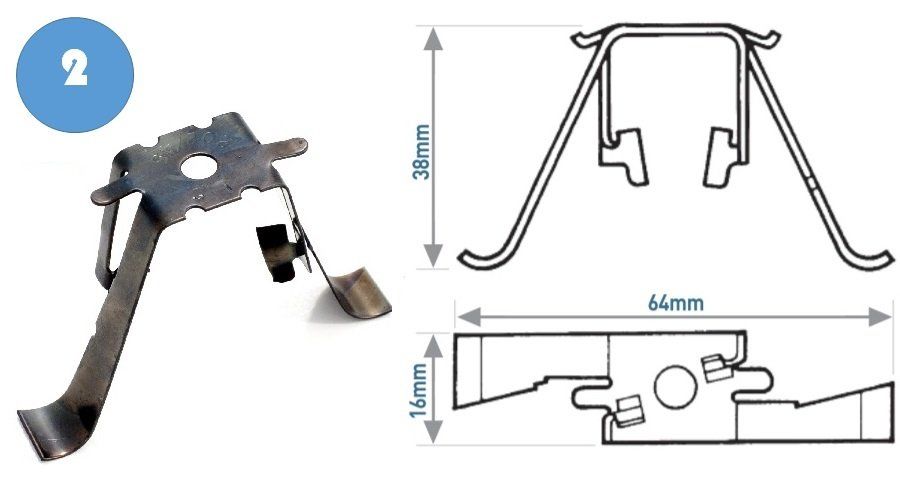

UNIVERSAL HOLD DOWN CLIP
L.S.202/45
Metal ceiling tile support clip with dimensions: 38mm height, 66mm width, and 16mm depth.

THICKNESS: (mm): 0.45
WEIGHT(KG) PER 100: 0.44
SIZE (mm): 64.00
MATERIAL: Spring steel
STANDARD FINISHES: B and K
PACKED PER BOX: 500

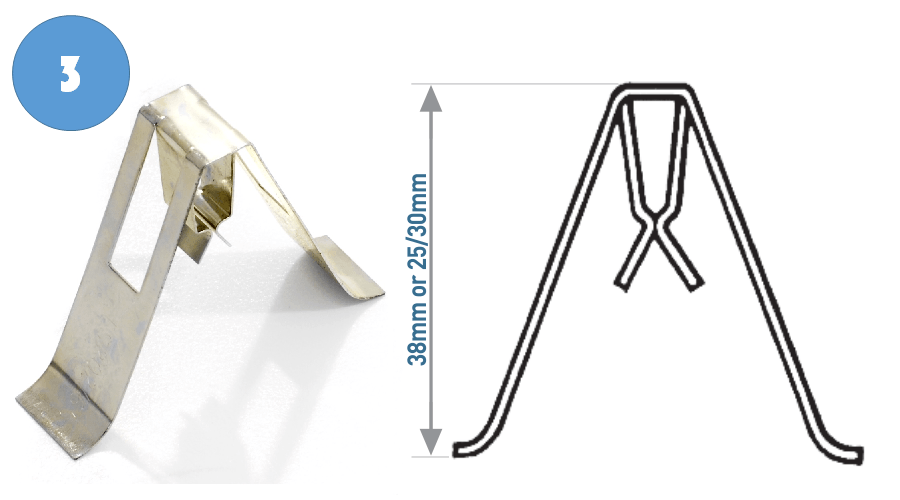

VARIABLE HOLD DOWN CLIP
L.S.202/65
Metal spring clip, bent into a V-shape. One end has a square cutout. Diagram shows height options: 36mm or 25/30mm.

THICKNESS: (mm): 0.35
WEIGHT(KG) PER 100: 0.36
SIZE (mm): 38.00
MATERIAL: Spring steel
STANDARD FINISHES: B,K and V
PACKED PER BOX: 500
1. L.S.202/15 - Direct Suspension Clip
2. L.S.202/45 - Universal Hold Down Clip
3. L.S.202/65 - Variable Hold Down Clip
4. L.S.202/66 - Variable Hold Down Clip
5. L.S.202/71 - Universal Suspension Clip
6. L.S.202/70 - 4mm Double Spring Clip

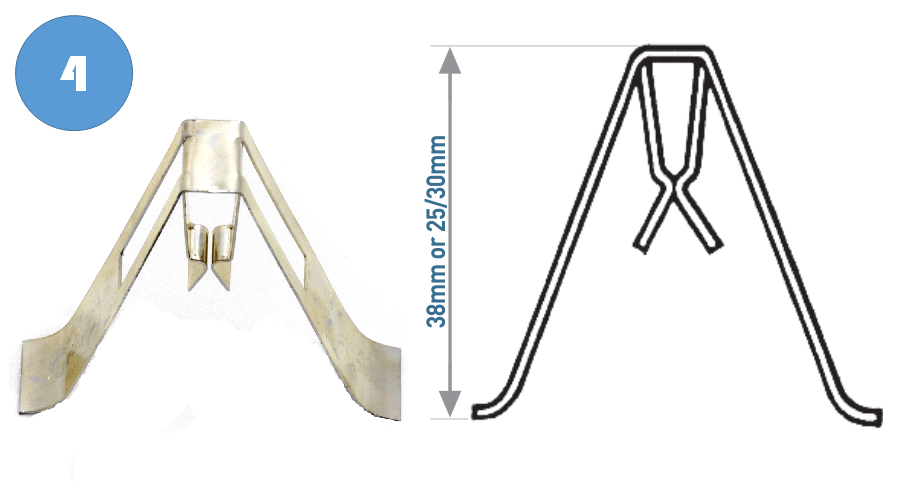

VARIABLE HOLD DOWN CLIP
L.S.202/66
Metal spring clip, possibly for attaching something to a ceiling.

THICKNESS: (mm): 0.35
WEIGHT(KG) PER 100: 0.20
SIZE (mm): 25/30.00
MATERIAL: Spring steel
STANDARD FINISHES: B,K and V
PACKED PER BOX: 500

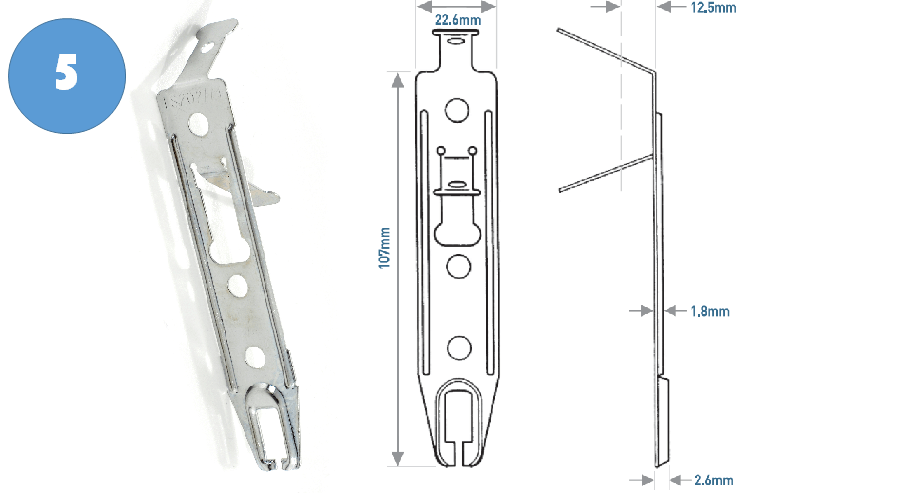

UNIVERSAL SUSPENSION CLIP
L.S.202/71
Diagram of metal bracket with dimensions labeled, including its side and top views.

THICKNESS: (mm): 0.70
WEIGHT(KG) PER 100: TBC
SIZE (mm): 107
MATERIAL: Spring steel
STANDARD FINISH: K
PACKED PER BOX: 500

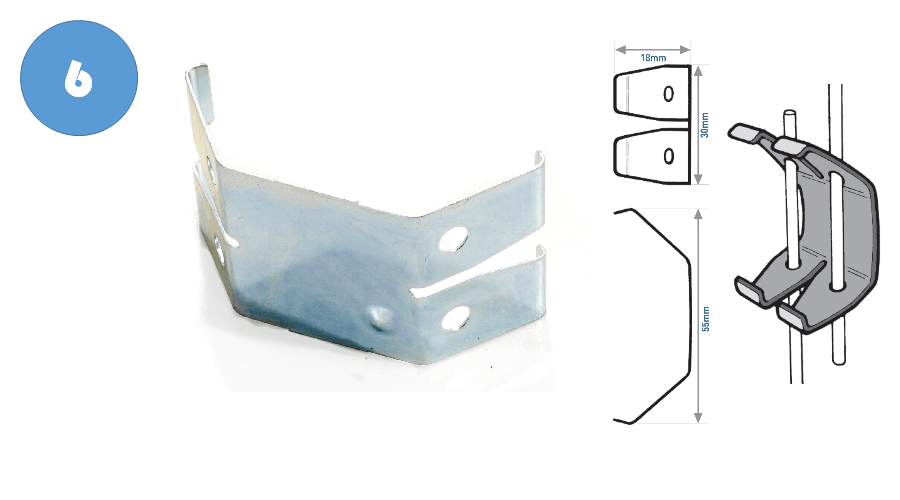

DOUBLE SPRING CLIP
L.S.202/69 - L.S 202/70*
Metal bracket with mounting holes, diagrams showing dimensions and installation on a rod.

THICKNESS: (mm): 0.50
WEIGHT(KG) PER 100: 0.92
SIZE (mm): 3.00 & 4.00*
MATERIAL: Spring steel
STANDARD FINISHES: B,K,L,U and V
PACKED PER BOX: 500
STANDARD FINISHES

(B) Polished bright, clean natural or blue/brown oxidised finish. Dipped in rust preventing oil.
(K) Electro-plated zinc. Colourless/clear, chromatic passivation
(L) Electro-plated zinc. Colour Chromatic passivation
(U) Xylan
(V) Phospate, Stain and Oil

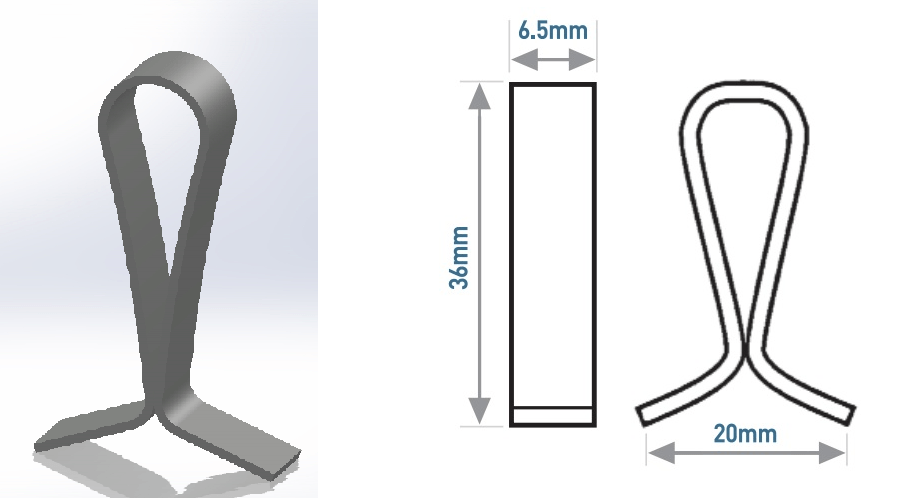

HOLD DOWN CLIP (V15)
EXPOSED GRID SYSTEM - L.S.202/47
Diagram of a metal clip with dimensions: 36mm long, 6.5mm wide, 20mm base width, and a looped top.

DESCRIPTION: To suit various board thicknesses
THICKNESS (mm): 0.813
WEIGHT(KG) PER 100: 0.35
SIZE (mm): 36.00
MATERIAL: Spring Steel
STANDARD FINISH: B & K
PACKED PER BOX: 500

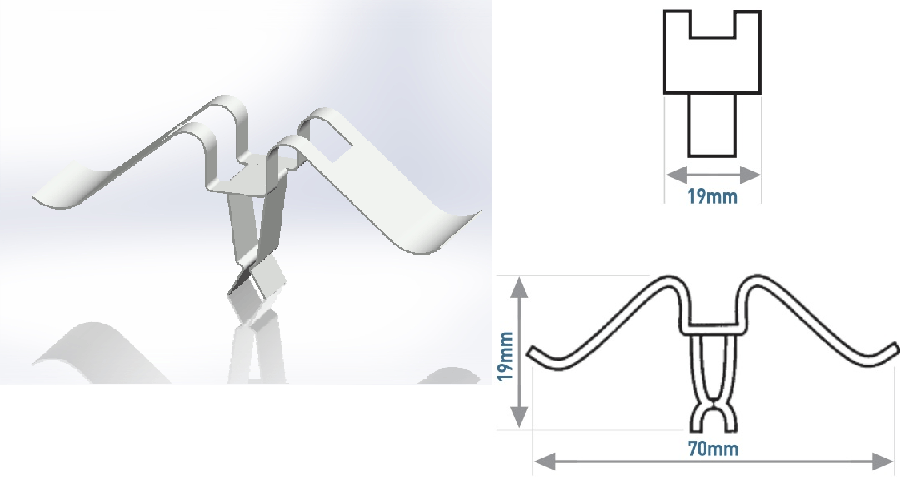

HOLD DOWN CLIP (Glass fibre boards)
EXPOSED GRID SYSTEM - L.S.202/14 - L.S.202/15*
A 3D rendering and blueprint of a white metal clip. The clip has two curved arms and a central stem.

DESCRIPTION: To suit various board thicknesses
THICKNESS: (mm): 1.50
WEIGHT(KG) PER 100: 0.98 & 1.60*
SIZE (mm): 38.00 & 57.00*
MATERIAL: Galvanised mild steel
STANDARD FINISH: Self Colour
PACKED PER BOX: 100

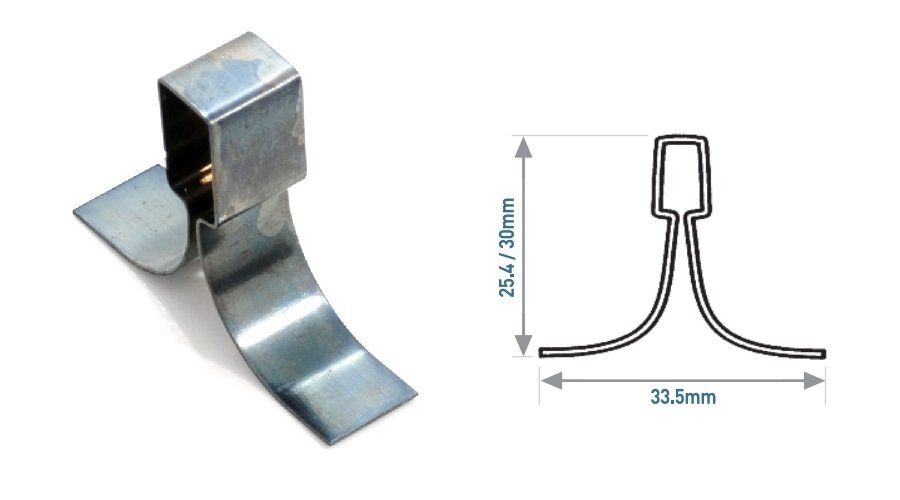

HOLD DOWN CLIP
EXPOSED GRID SYSTEM - L.S.202/60 - L.S.202/61
Metal spring clip with a box top and curved, flared base. Dimensions labeled.

DESCRIPTION: To suit various board thicknesses
THICKNESS: (mm): 0.40
WEIGHT(KG) PER 100: 0.23 & 0.28*
SIZE (mm): 30.00 & 25.40*
MATERIAL: Spring steel
STANDARD FINISHES: B and K
PACKED PER BAG: 100

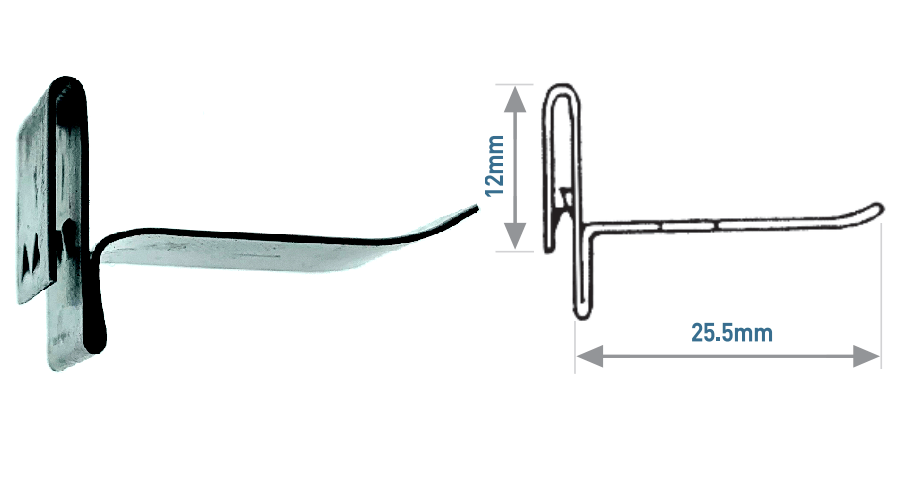

PERIMETER HOLD DOWN CLIP
EXPOSED GRID SYSTEM - L.S.202/27
Metal shelf hook with dimensions: 12mm high loop, 25.5mm long arm.

DESCRIPTION:   n/a
THICKNESS: (mm): 0.46
WEIGHT(KG) PER 100: 0.19
SIZE (mm): 46.00
MATERIAL: Spring steel
STANDARD FINISHES: B and V
PACKED PER BOX: 500

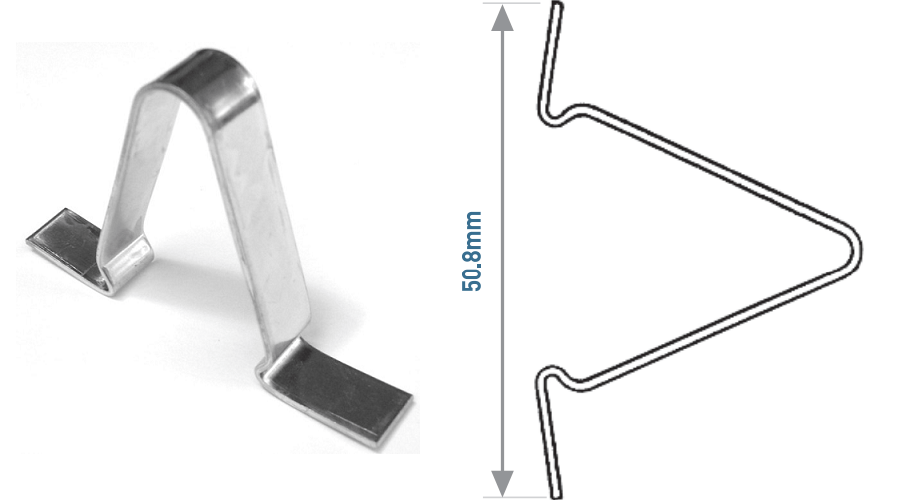

SUSPENSION CLIP
HANGER ACCESSORIES - L.S.108/40
Metal V-shaped spring clip with two flat base extensions, 50.8mm high.

DESCRIPTION: n/a
THICKNESS: (mm): 1.00
WEIGHT(KG) PER 100: 0.66
SIZE (mm): 50.8
MATERIAL: Spring Steel
STANDARD FINISH: K
PACKED PER BOX: 100
CHANNEL BRACKET
ADJUSTABLE SUSPENSION HANGING BRACKET - L.S.202/10

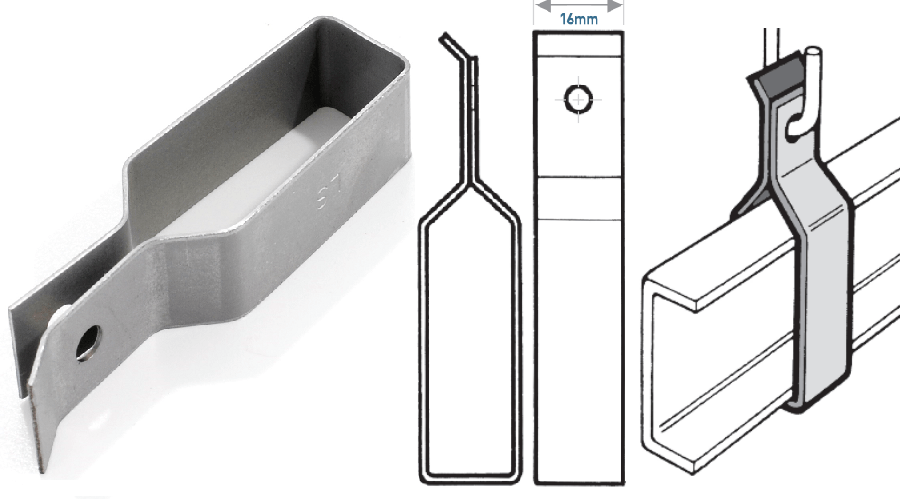

Metal beam clamp, used to secure items to metal beams.

DESCRIPTION: n/a
THICKNESS: (mm): 0.50
WEIGHT(KG) PER 100: 1.83
SIZE (mm): 16
MATERIAL: Galvanised mild steel
STANDARD FINISH: Self colour
PACKED PER BOX: 500

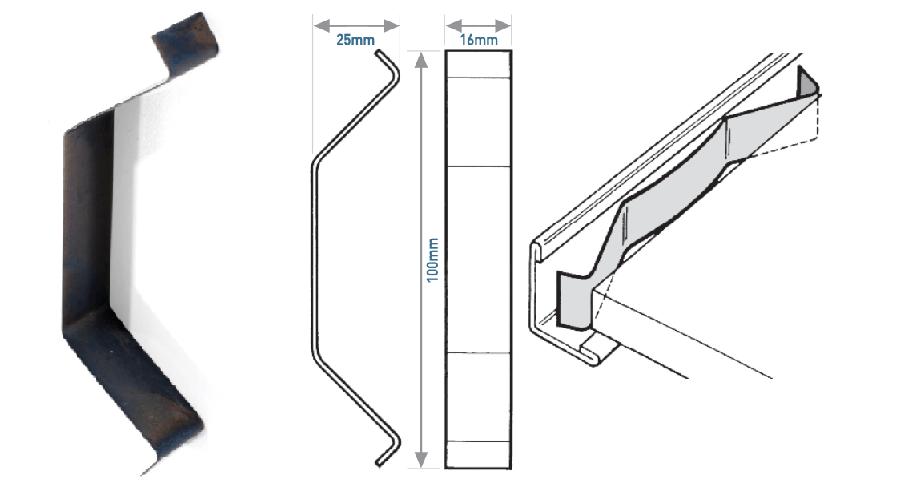

WALL SPRING CLIP
CONCEALED CEILING SPRING  - L.S.202/07
Metal bracket for guttering with dimensions, side and installation view.

DESCRIPTION: n/a
THICKNESS: (mm): 0.45
WEIGHT(KG) PER 100: 0.78
SIZE (mm): 0.78
MATERIAL: Spring steel
STANDARD FINISHES: B
PACKED PER BOX: 200

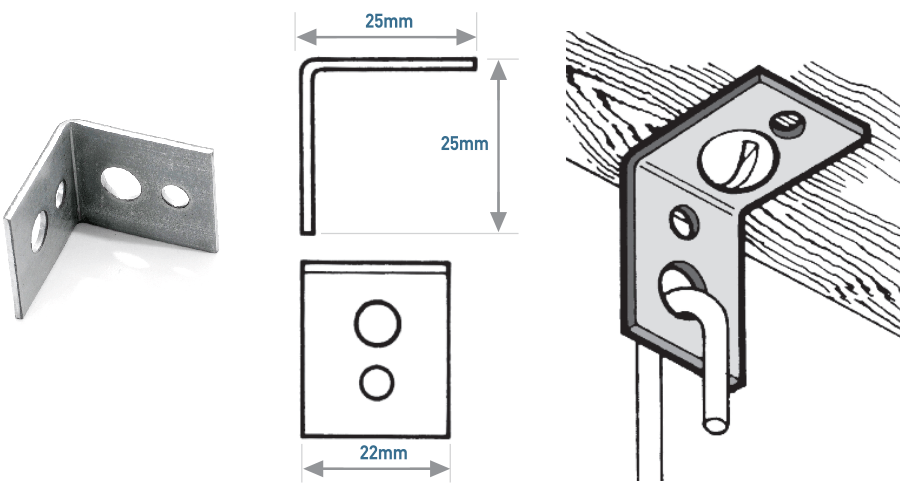

ANGLE BRACKET
MISCELLANEOUS - L.S.202/02
Metal corner bracket with dimensions, shown attached to wooden beams.

DESCRIPTION: n/a
THICKNESS: (mm): 1.00
WEIGHT(KG) PER 100: 1.50
SIZE (mm): 42.00
MATERIAL: Galvanised mild steel
STANDARD FINISHES: Self Colour
PACKED PER BOX: 100/1000

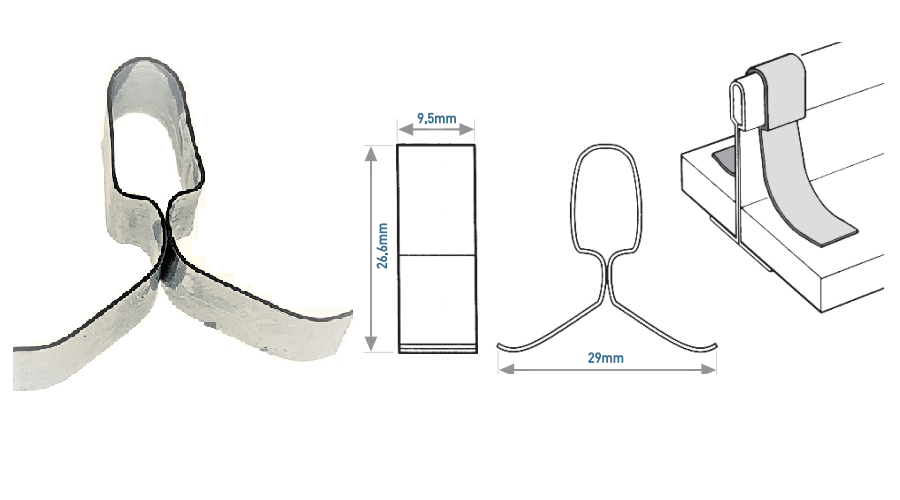

HOLD DOWN CLIP
MISCELLANEOUS  - L.S.202/68
Metal spring clip with dimensions and diagram of its use.

DESCRIPTION: n/a
THICKNESS: (mm): 0.375
WEIGHT(KG) PER 100: 0.23
SIZE (mm): 26.6
MATERIAL: Spring Steel
STANDARD FINISH: B & K
PACKED PER BOX: 500

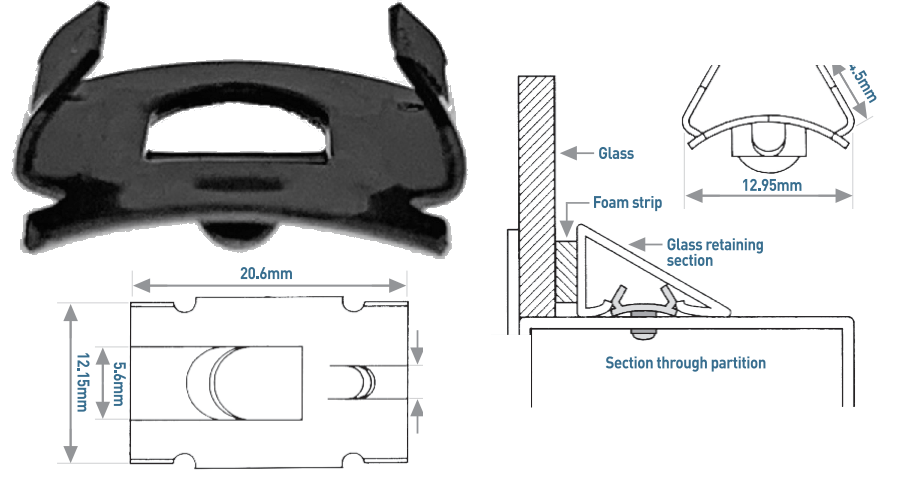

PARTITION GLASS RETAINING CLIP
PARTITION CLIPS  - L.S.202/20
Black glass partition clip with dimensions and sectional view diagram.

DESCRIPTION: n/a
THICKNESS: (mm): 0.50
WEIGHT(KG) PER 100: 0.13
SIZE (mm): 20.6
MATERIAL: Spring steel
STANDARD FINISH: B
PACKED PER BOX: 5,000
SIGN HANGER
HANGER ACCESSORIES  - L.S.202/79

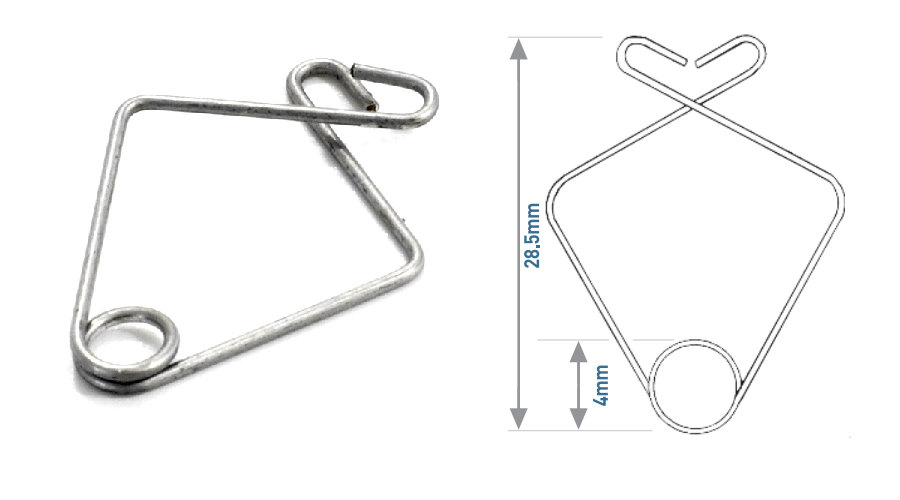

Metal spring clasp with a diamond-shaped frame and a circular base, with dimensions labeled.

DESCRIPTION: n/a
THICKNESS: (mm): TBC
WEIGHT(KG) PER 100: TBC
SIZE (mm): 28.5
MATERIAL: Pre-galvanised Spring steel wire
STANDARD FINISHES: Self Colour
PACKED PER BAG: 2,500

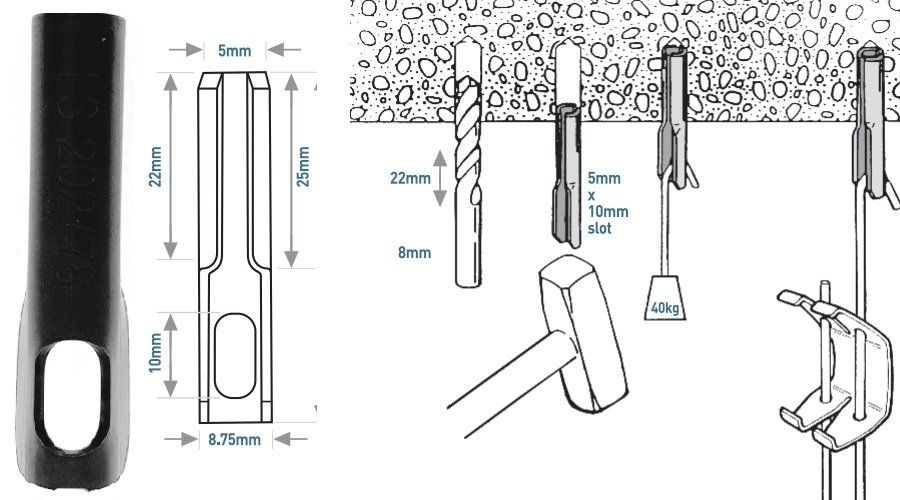

ANCHOR
HANGER ACCESSORIES - L.S.202/78
Diagram of concrete anchoring process: drill, anchor, hammer, and dimensions of parts.

DESCRIPTION: n/a
THICKNESS: (mm): 1.20
WEIGHT(KG) PER 100: 0.25
SIZE (mm): 42.00
MATERIAL: Spring steel
STANDARD FINISHES: B and K
PACKED PER BOX: 500
STANDARD FINISHES

(B) Polished bright, clean natural or blue/brown oxidised finish. Dipped in rust preventing oil.
(K) Electro-plated zinc. Colourless/clear, chromatic passivation
(L) Electro-plated zinc. Colour Chromatic passivation
(U) Xylan
(V) Phospate, Stain and Oil
